Synthesis Technology - E580 Resampling Mini-Delay

The Synthesis Technology - E580 Resampling Mini-Delay is a lot of delay effects in one module. It emulates, tape delay, BBD delay, and features a "cleaner" delay as well. Thanks to the hard work dedicated to write the code and the careful design of CV inputs, this module can instantly find its place in any rack.

€360.00
Availability: Out of stock
SKU
E580

The Synthesis Technology - E580 Resampling Mini-Delay is a lot of delay effects in one module. It emulates, tape delay, BBD delay, and features a "cleaner" delay as well. Thanks to the hard work dedicated to write the code and the careful design of CV inputs, this module can instantly find its place in any rack.

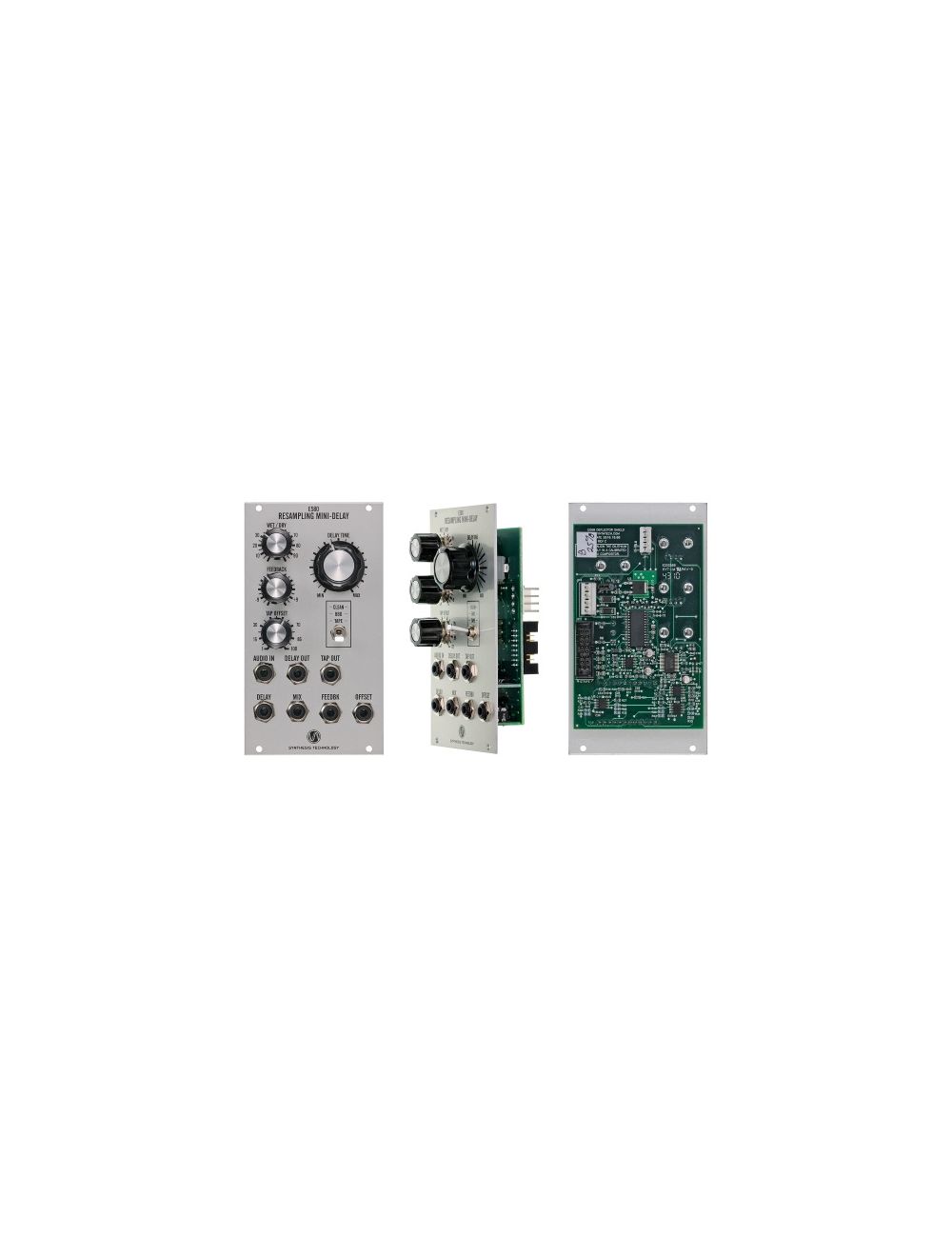

The Synthesis Technology - E580 Resampling Mini-Delay emulates the classic sounds of digital, BBD (bucket brigade), and tape-based delays with four parameters under voltage control. This 14hp wide Eurorack module accepts either +/-12V standard power or +/-15V MOTM/power. Using a 40MHz DSP and 24-bit codec, the E580 recreates the pitch-shift modulation of BBDs, including the variable bandwidth and noise floor, without costly and scarce BBD ICs. In Tape Mode, wow & flutter, tape saturation and non-linear distortions emulate classic tape units without the bulk and maintenance. There are two simultaneous audio outputs: a straight delay and a variable tapped delay. The tap position is a percentage of the main delay time. This allows very short delays (Feedback is jumper-selectable from either the tapped position or the main delay. This flexibility can generate standard rhythmic delays (feedback from main delay) or a series of pre-delay reflections (tapped delay) which sound very different from each other.
