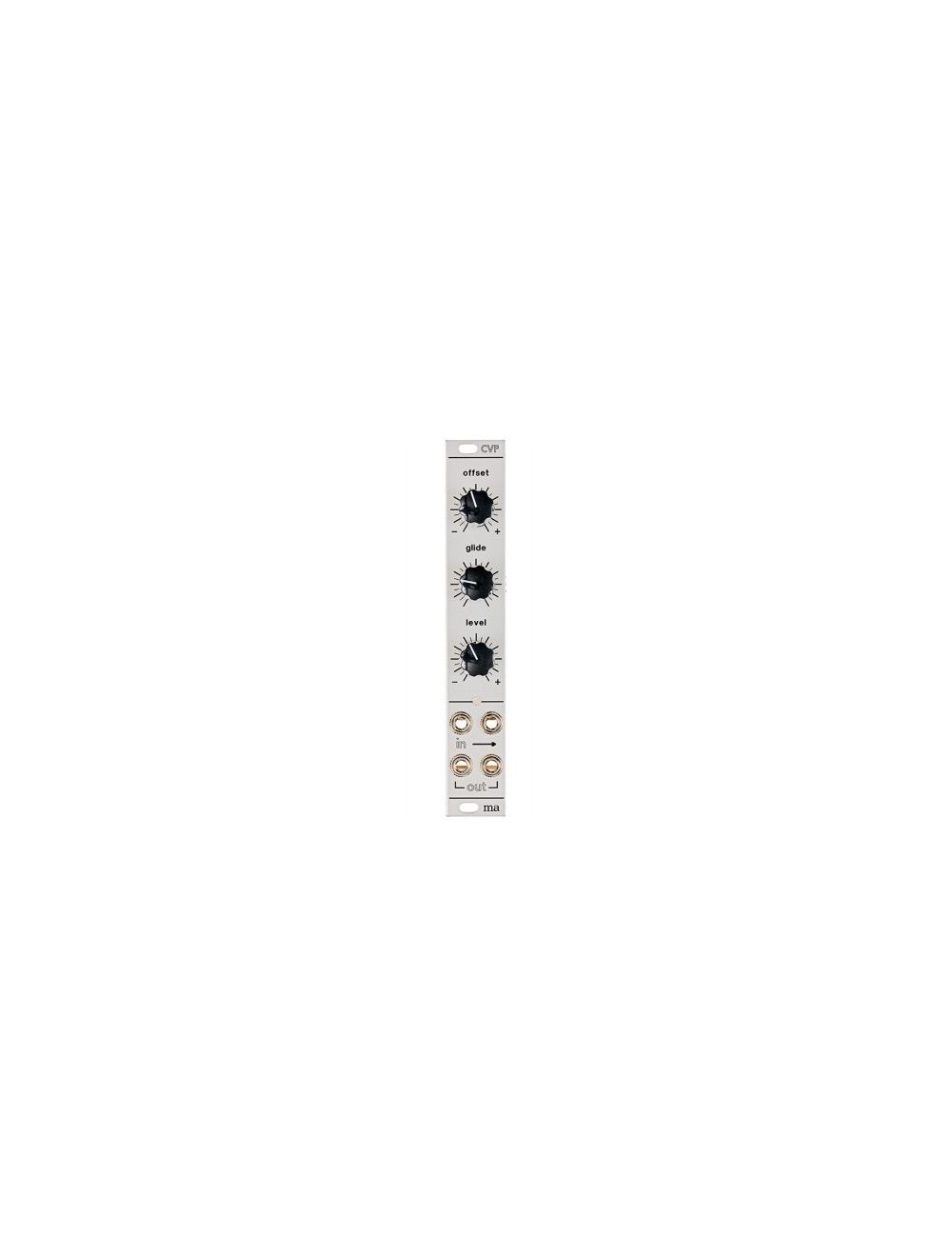

Manhattan Analog - CVP
The Manhattan Analog - CVP is a sapce-saving and cost-effective ÿCV processing module for your eurorack modular synthesizer.
The Manhattan Analog - CVP combines several circuits for processing CV signals: an offset generator, a slew limiter and a polarizer.
OFFSET: adds a fixed offset voltage to the input signal which can be adjusted in the range of -5V to 5V.
GLIDE: a controllable slew limiter for smoothining abrupt voltage changes , creating portamento or simple AD envelopes.
LEVEL: a bipolar attenuator, for controlling the input level and for inverting it.
The input sinal is being passed non-processed to the socket that is marked with an arrow, it is a sort of "thru" socket. The processed signal is available at two parallel, buffered outputs so you can send the signal to several inputs without signal drop. The total gain is trimmed exactly to "1", making the CVP suitable for pitch CVs.
