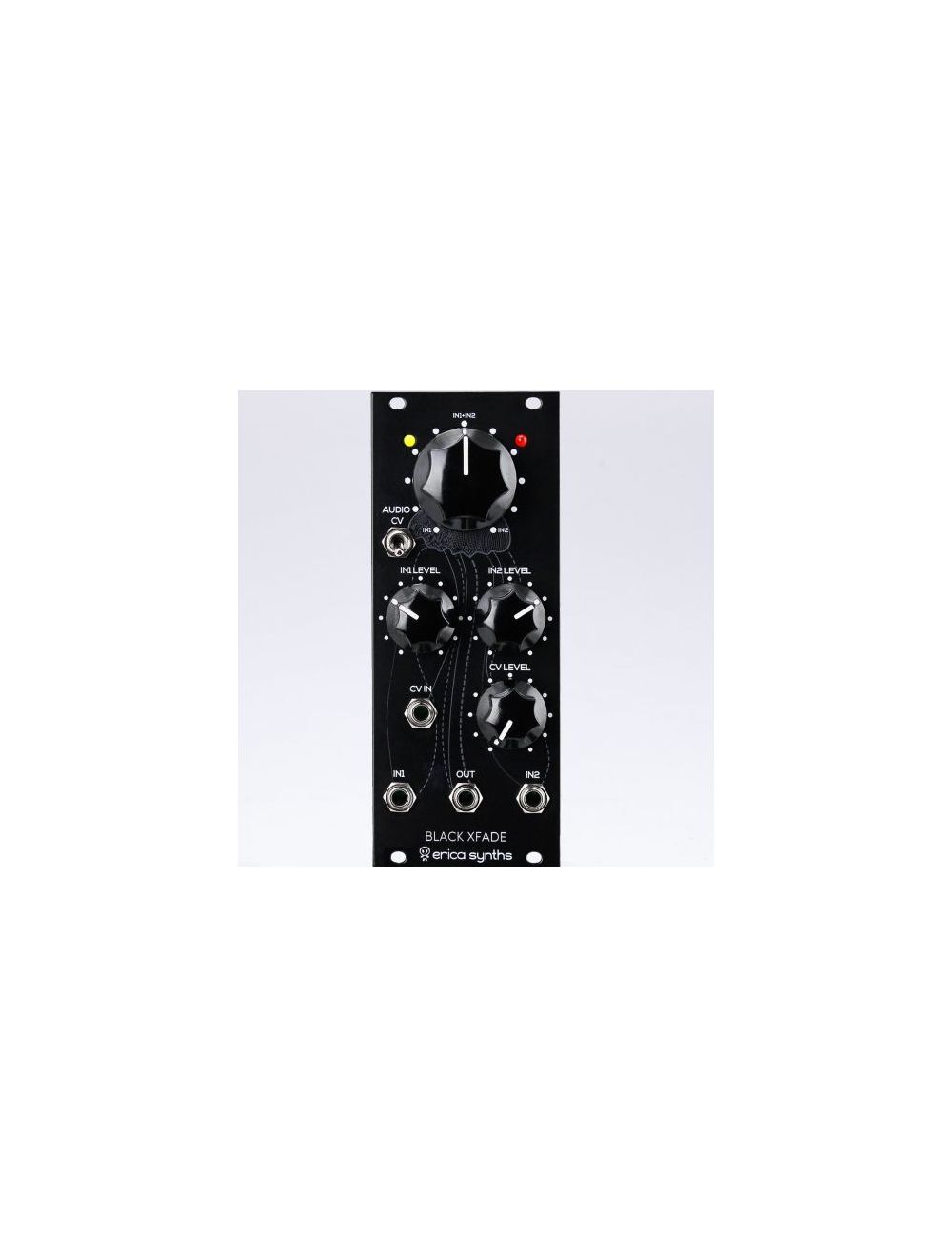

Erica Synths - Black Xfade

Erica Synths - Black Xfade is a high-quality crossfader for audio, CV, even clock signals with smooth morphing function and stable gain. This feature package is few and far between in the eurorack world.

€157.20 €131.00
Availability: In stock
SKU
esbxf
Erica Synths - Black Xfade is available to buy in increments of 1

Erica Synths - Black Xfade is a high-quality crossfader for audio, CV, even clock signals with smooth morphing function and stable gain. This feature package is few and far between in the eurorack world.


Erica Synths - Black Xfade is a high-end module for smooth manual or CV controlled crossfading between two audio or CV signals,essential for modular performances.

Fade curve is calculated in a way that you do not loose signal amplitude in any crossfade stage, and LEDs give visual feedback on currently active input. When used with CVs, the module helps to come up with really advanced modulations. In addition Black XFADE can be used to boost CV and audio signals.

Features:

2 inputs with amplifiers and attenuators
Manually and CV controlled crossfade
Audio/CV mode switch
Crossfade status indication LEDs

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.



Technical specifications:

Input signal amplitude: up to 20Vptp
Xfade CV amplitude (full sweep): -5V-+5V
Input gain: 2
Power consumption: +35mA, -34mA
Module width: 10HP
Module depth: 25mm
User Manual
