4ms Pedals - SCM kit

4ms Pedals - SCM kit brought a novel concept into the already existing functionality of a clock multiplier: like in a "snake-game", you can shift the outputs of the divider, and add a new dimension to your rhythmic / trigger patterns. It is also available as a diy kit which is not so hard to build.

€114.00 €95.00

Availability: Out of stock

SKU
4msSCMkit

4ms Pedals - SCM kit brought a novel concept into the already existing functionality of a clock multiplier: like in a "snake-game", you can shift the outputs of the divider, and add a new dimension to your rhythmic / trigger patterns. It is also available as a diy kit which is not so hard to build.

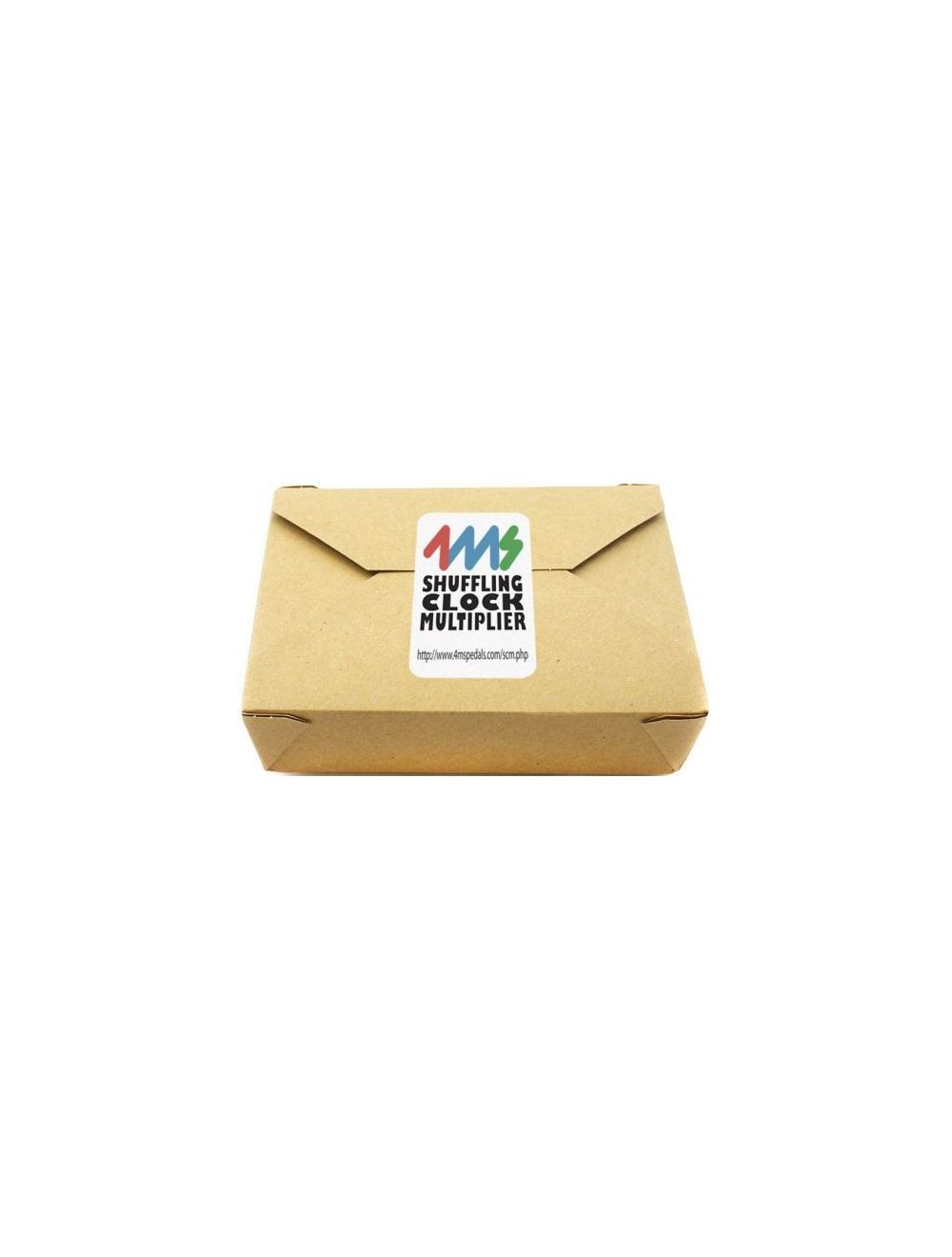

Build your own Shuffling Clock Multiplier, with the SCM kit.

The Do-it-yourself kit includes all the parts necessary to build a fully-featured SCM. This is a beginner-level kit, but you need some prior experience, and have basic hand tools (flush snips, needle-nose pliers, small screw driver).

Multiply-by-1 to Multiply-by-32, on 8 output jacks

Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)

Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effects

CV Rotate jack to shift multiply-by amount on all jacks

CV Slip causes particular beats to land ahead in time

Connects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x Fast

ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code

Maximum input frequency 3kHz

Module size:

The SCM is 4HP and 35mm (1.39") deep

Power consumption:

5VSEL Jumper set to INT:

33mA maximum power draw from +12V rail

0mA max on the +5V rail

4mA maximum power draw on the -12V rail

5VSEL Jumper set to EXT:

19mA maximum power draw on the +12V rail

14mA max on the +5V rail

4mA maximum power draw on the -12V rail
