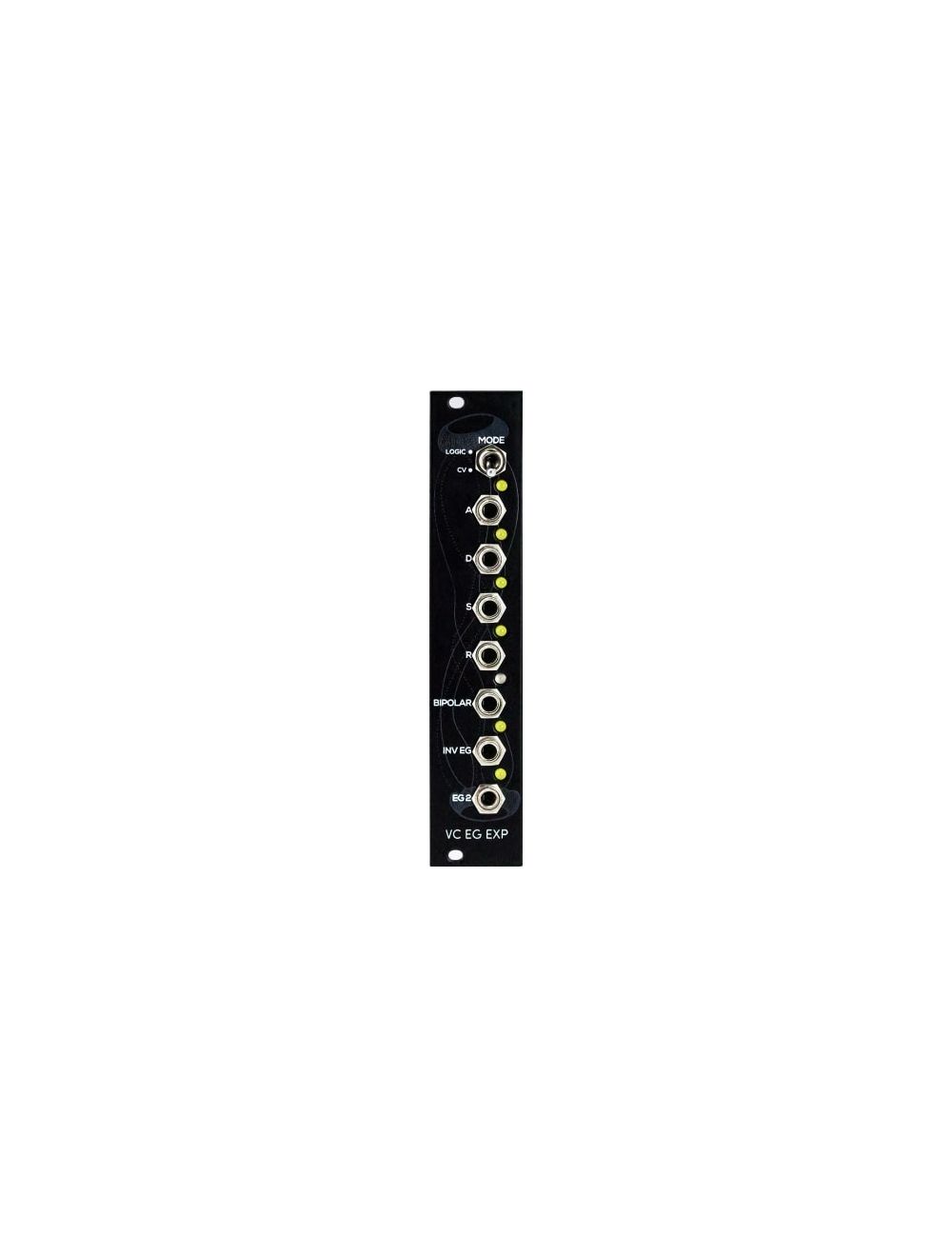

Erica Synths - Black VC EG Expander

Erica Synths - Black VC EG Expander adds the ultimate and more sequence-oriented integration to the already very versatile Black VC EG module. Your envelope basically becomes a trigger sequencer with this expander.

€114.00 €95.00
testing final

Availability: Limited stock

Ships today if ordered in the next 6 hours and 33 minutes!

SKU
esbvcegxp

Erica Synths - Black VC EG Expander adds the ultimate and more sequence-oriented integration to the already very versatile Black VC EG module. Your envelope basically becomes a trigger sequencer with this expander.

Erica Black VC EG Expander takes the Black VC EG to the next level – it outputs gates or CVs for each active stage of the envelope, so you can design really advanced patches. Also, inverted and bipolar envelope outputs are available.

NB! This is expander module that can be connected only to the Black VC EG. It will not work as standalone eurorack module.

Features:

  • 4 simultaneous logic or CV outputs for each envelope stage
  • Bipolar envelope output (-5V - +5V)
  • Inverted envelope output
  • Duplicated envelope output
  • 5HP panel width

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, the makers did not economise on the module width, they put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

User Manual

More Information
Width (HP) 5
Depth (mm) 25
Skiff friendly Yes
